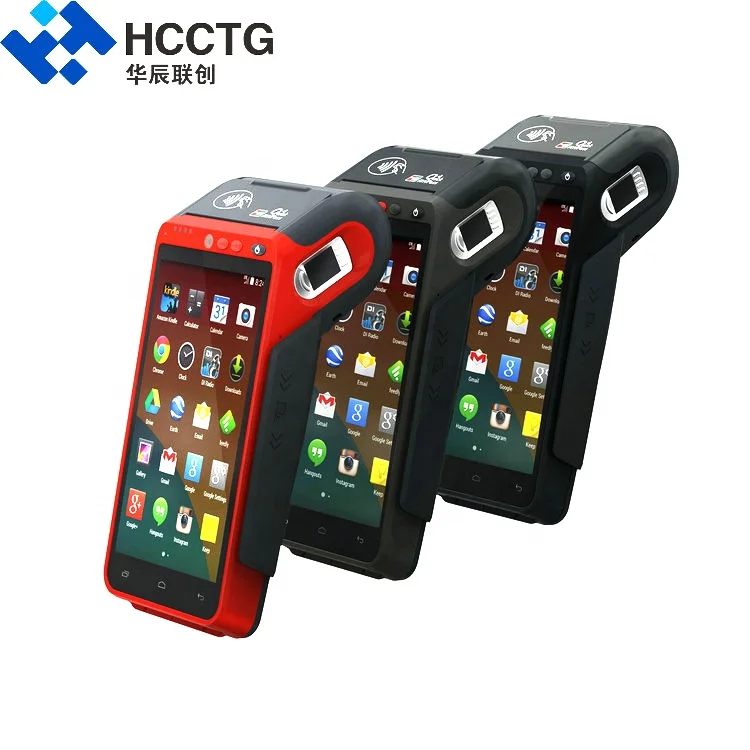

Fiscal Module Android Handhold Terminal POS Secure Cashless Payment Device HCC-Z100

  • 1 - 49 Units
    $190.00
  • 50 - 499 Units
    $170.00
  • 500 - 999 Units
    $150.00
  • >=1000 Units
    $145.00
Model Number:
HCC-Z100
Screen Size:
Other
Lead Time:
Quantity(Units) 1 - 50 51 - 100 101 - 200 >200
Est. Time(days) 7 15 30 Negotiable
Samples - $190.00 /Units, 1 Units (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HCCTG
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year
Operation System:
Android 7.0 or 5.1
CPU:
Quad-Core 1.35GHZ
Touch Screen Type:
Capacitive Screen
Hard Disk Capacity:
1G+8G
Product Name:
cashless payment device
Display:
5.5 inch TFT IPS LCD,resolution 1280*720
Bar-code reader:
Support 1D and 2D
Battery:
Li-ion battery ,7.2V /2600mAH
Charging Port:
Type C USB Port ,5V DC,2A
Certification:
EMV, PCI, CE, FCC
Communication:
4G/3G/2G/Wi-fi/ Hot spots/Bluetooth
Color:
Red/etc
Card Reader:
Magnetic, Smart IC/NFC Card Reader
Function:
Fingerprint+Camera+GPS+Fiscal Module
Supply Ability
Supply Ability:
20000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Fiscal Module Android Handhold Terminal Secure Cashless Payment Device HCC-Z100
General Packing:
5 pcs/carton; Carton Size: 36*40*31 cm; Weight: 5 kg;
20 pcs/carton; Carton Size: 44*55*47 cm; Weight: 17 kg;
Port
shenzhen/guangzhou/hongkong/shanghai
Lead Time :
Quantity(Units) 1 - 50 51 - 100 101 - 200 >200
Est. Time(days) 7 15 30 To be negotiated
Video Description

Fiscal Module Android Handhold Terminal Secure Cashless Payment Device HCC-Z100



General

  • The HCC-Z100 is the cutting-edge secure electronic payment terminal powered by safe-Android 5.1 operation system. It comes with a 5.5inch high definition colorful display, industrial level thermal printer and flexible configuration for various barcode scanner scenarios. A wide range of advanced connectivity options are supported for global 3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.
  • Empowered by Quad-core CPU and massive memory, HCC-Z100 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.

Features

  • Safedroid OS, Based on Android 5.1 OS;
  • 5.5 inch TFT IPS LCD, resolution 1280*720;
  • Built-in high speed thermal printer , with over 50Km print life
  • Full bands for global coverage: 4G/3G/2G,WLAN,VPN
  • Authentec,508dpi fingerprint module for biometric identification
  • Dual camera for quickly QR code scan & Honeywell 2D scanner as option
  • One-stop payment of MSR/IC/NFC



Basic

Characteristics

OS

Safedroid OS (Based on Android 7.0 or 5.1)

CPU

Quad-Core 1.35GHZ

ROM

8GB ROM EMMC

RAM

1G RAM LPDDR3

Display

5.5 inch TFT IPS LCD,resolution 1280*720

Panel

Ultra sensitive capacitive touch screen, can work with gloves and wet fingers

Dimensions

206mmX84mmX32mm (max 56mm)

Weight

530g(Battery included)

Keys

3 Physical keys:1 ON/OFF KEY,2 Shortcut keys

3 Virtual keys:Menu,Home,Back

Input

Chinese/English ,and supports handwriting and soft keyboard

Radio Communication

WIFI

IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ

Bluetooth

BT 4.0 LE +EDR

4G

TD-LTE:Band38, Band39, Band40, Band41

FDD-LTE:Band1,Band3,Band7,Band8,Band20

3G

UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5

CDMA EV-DO Rev.A:800MHZ

TD-SCDMA:Band34,Band39

2G

GSM/GPRS/EDGE:850/900/1800/1900MHZ

Payment

Magcard reader

Supports ISO7811/7812/7813, and supports triple

track (tracks 1/2/3), bi-directional

Smart Card reader

Supports ISO7816 standard

Contactless Card reader

Supports 14443A / 14443B

Expansion and peripherals

Printer

High-Speed Thermal Printer ;

58mm printing paper ;

40mm paper roll

Camera

5MP camera with LED flash and auto-focus function

Satellite Positioning

GPS, GLONASS, Bei-Dou satellite navigation system, Supports A-GPS

Audio

Speaker ,Microphone,Earphone

Interfaces

Micro SD Card Slot

1 PCS

SIM Card Slot

2 PCS MICRO SIM

PSAM Card Slot

2 PCS Conforms to ISO7816 standard

USB Port

1PCS TYPE C USB

Power

Battery

Li-ion battery ,7.2V /2600mAH

Charging Port

Type C USB Port ,5V DC,2A

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Humidity

5% to 95% Relative Humidity, Non-Condensing

Certification

Electromagnetic

CE/ROHS

Optional

Fingerprint

Semiconductor capacitance

14.4mm x 10.4mm imaging area

208 x 288 pixel array,
Crossmatch FBI certified

Authentec,508dpi

Front camera

2 Megapixel Fixed Focal Camera

Barcode Scanner

Honeywell 2D Image Engine, Support 1D and 2D symbologies

Fiscal Module

Russian format

FAQ

Fiscal Module Android Handhold Terminal Secure Cashless Payment Device HCC-Z100



1. Do you have POS in stock? How long you can send out the goods?
Yes, we have. Normally, samples within 3 working days. Bulk qty about 7 days.



2. What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;



3.Can I get a sample for testing before formal order? How to get it?
Yes. Of course. We will arrange shipment for you through DHL as soon as we receive the payment.



4. Can you provide SDK?
Yes, SDK will be provided free to help you do the secondary development.



5. Do you offer other POS peripherals?
Yes, we offer One-stop POS products service, such as POS / Mobile / Kiosk / Panel Printer, Barcode Scanner, Smart / NFC / Magnetic Card Reader & Writer, POS Keyboard, Cash Drawer, Cash Register,Passport Reader, Check Scanner!



6.What payment methods your company accept?
We mainly accept Paypal, T/T, Western Union, MoneyGram, D/A, D/P, Visa; Master; E-checking; Trade Assurance; Credit Card; Cash.



7.What's the shipment terms and delivery time of your compay?
Well, they depends on the quantity of your order. As you know, we need time to manufacture the machines. But mostly ,the shipment time is 3-5 working days after delivery.



8. Are you manufacturer?
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of PC/POS/Mobile Payment product & Solution.
