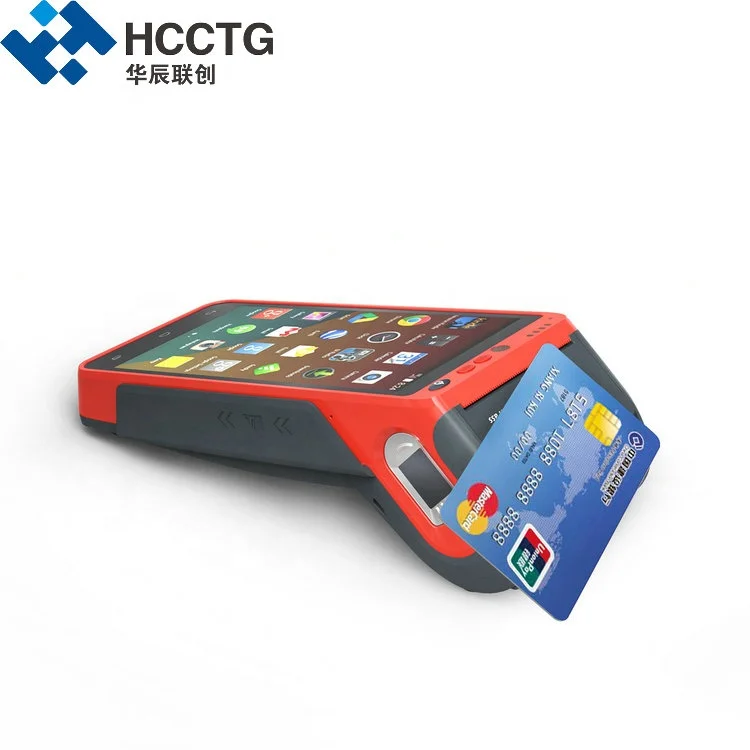

Unique Design Payment Terminal Portable Android Mobile POS with Built-in Thermal Printer HCC-Z100

FOB Reference Price:Get Latest Price
$140.00 - $190.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
HCC-Z100
Screen Size:
Other
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 101 - 200 >200
Est. Time(days) 5 14 21 Negotiable
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Samples - $190.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HCCTG
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year
Operation System:
Android 7.0(5.1 at optional)
CPU:
Quad-Core 1.35GHZ
Touch Screen Type:
Capacitive Screen
Hard Disk Capacity:
RAM:1GB FLASH:8GB
Certification:
CE,FCC,EMV,PCI,MSDS,UN38.3
Interface:
USB/PSAM/SIM/Micro SD
Communication:
4G3G2G/Wifi/Bluetooth
Display screen:
5.5 inch screen touch
Printer:
Built-in high speed thermal printer
Magnetic card reader:
Support 1/2/3 tracks, two-way scratch card
GPS:
Built-in GPS
Camera:
5 mega-pixel camera
Battery:
Lithium battery: 2600 mah, 7.4V
All 3 G netcom:
WCDMA/CDMA/TD-SCDMA
Supply Ability
Supply Ability:
9999 Piece/Pieces per Month Unique Design Payment POS Terminal Portable Android Mobile POS w
Packaging & Delivery
Packaging Details
Unique Design Payment Terminal Portable Android Mobile POS with Built-in Thermal Printer HCC-Z100
General Packing:
1 pc/box; Box Size: 26*21*11 cm; Weight: 0.5 kg;
5 pcs/carton; Carton Size: 36*40*31 cm; Weight: 5 kg;
20 pcs/carton; Carton Size: 44*55*47 cm; Weight: 17 kg;
Port
shenzhen/guangzhou/hongkong/shanghai
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 101 - 200 >200
Est. Time(days) 5 14 21 To be negotiated
Video Description

Unique Design Payment Terminal Portable Android Mobile POS with Built-in Thermal Printer HCC-Z100



General

  • The HCC-Z100 is the cutting-edge secure electronic payment terminal powered by safe-Android 5.1 operation system. It comes with a 5.5inch high definition colorful display, industrial level thermal printer and flexible configuration for various barcode scanner scenarios. A wide range of advanced connectivity options are supported for global 3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.
  • Empowered by Quad-core CPU and massive memory, HCC-Z100 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.



Features

  1. Safedroid OS, Based on Android 5.1 OS;
  2. 5.5 inch TFT IPS LCD, resolution 1280*720;
  3. Built-in high speed thermal printer , with over 50Km print life
  4. Full bands for global coverage: 4G/3G/2G,WLAN,VPN
  5. Authentec,508dpi fingerprint module for biometric identification
  6. Dual camera for quickly QR code scan & Honeywell 2D scanner as option
  7. One-stop payment of MSR/IC/NFC

Specifications

Basic

Characteristics

OS

Safedroid OS (Based on Android 7.0 or 5.1)

CPU

Quad-Core 1.35GHZ

ROM

8GB ROM EMMC

RAM

1G RAM LPDDR3

Display

5.5 inch TFT IPS LCD,resolution 1280*720

Panel

Ultra sensitive capacitive touch screen, can work with gloves and wet fingers

Dimensions

206mmX84mmX32mm (max 56mm)

Weight

530g(Battery included)

Keys

3 Physical keys:1 ON/OFF KEY,2 Shortcut keys

3 Virtual keys:Menu,Home,Back

Input

Chinese/English ,and supports handwriting and soft keyboard

Radio Communication

WIFI

IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ

Bluetooth

BT 4.0 LE +EDR

4G

TD-LTE:Band38, Band39, Band40, Band41

FDD-LTE:Band1,Band3,Band7,Band8,Band20

3G

UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5

CDMA EV-DO Rev.A:800MHZ

TD-SCDMA:Band34,Band39

2G

GSM/GPRS/EDGE:850/900/1800/1900MHZ

Payment

Magcard reader

Supports ISO7811/7812/7813, and supports triple

track (tracks 1/2/3), bi-directional

Smart Card reader

Supports ISO7816 standard

Contactless Card reader

Supports 14443A / 14443B

Expansion and peripherals

Printer

High-Speed Thermal Printer ;

58mm printing paper ;

40mm paper roll

Camera

5MP camera with LED flash and auto-focus function

Satellite Positioning

GPS, GLONASS, Bei-Dou satellite navigation system, Supports A-GPS

Audio

Speaker ,Microphone,Earphone

Interfaces

Micro SD Card Slot

1 PCS

SIM Card Slot

2 PCS MICRO SIM

PSAM Card Slot

2 PCS Conforms to ISO7816 standard

USB Port

1PCS TYPE C USB

Power

Battery

Li-ion battery ,7.2V /2600mAH

Charging Port

Type C USB Port ,5V DC,2A

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Humidity

5% to 95% Relative Humidity, Non-Condensing

Certification

Electromagnetic

CE/ROHS

Optional

Fingerprint

Semiconductor capacitance

14.4mm x 10.4mm imaging area

208 x 288 pixel array,
Crossmatch FBI certified

Authentec,508dpi

Front camera

2 Megapixel Fixed Focal Camera

Barcode Scanner

Honeywell 2D Image Engine, Support 1D and 2D symbologies

Fiscal Module

Russian format


FAQ

1.What is your business scope?

We have been in PC/POS/Mobile Payment product & Solution for 10 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.



2.What is your mode of payment?
T/T, PAYPAL, Western Union, L/C, Trade Assurance, Credit Card, Cash, MoneyGram, D/P, D/A etc.



3.When will you delivery the goods?
Sample: 2-7 days;
Quantity order: 7-30 days upon deposit received;
Customized Product: according to the contract delivery time.



4.Would you provide SDK for me?
Yes, We offer free SDK if you order sample. All the contents in a CD ROM with sample together.



5.What is the FOB price and CIF price
In general, our prices are given on a FOB basis. For CIF price, I will check the cost from our shipping agent and recommend to you.



6.How can you guarantee the quality?
We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment.



7.How can you guarantee the exclusive sale for OEM & ODM service?
Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM project.



8.What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
